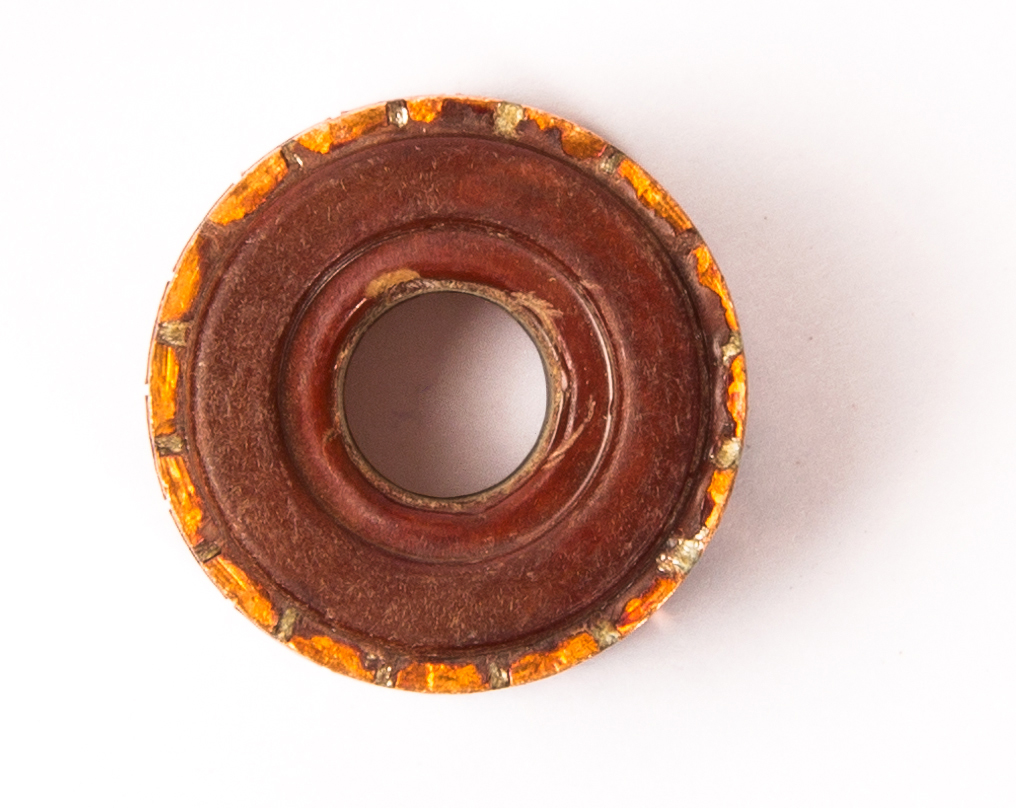

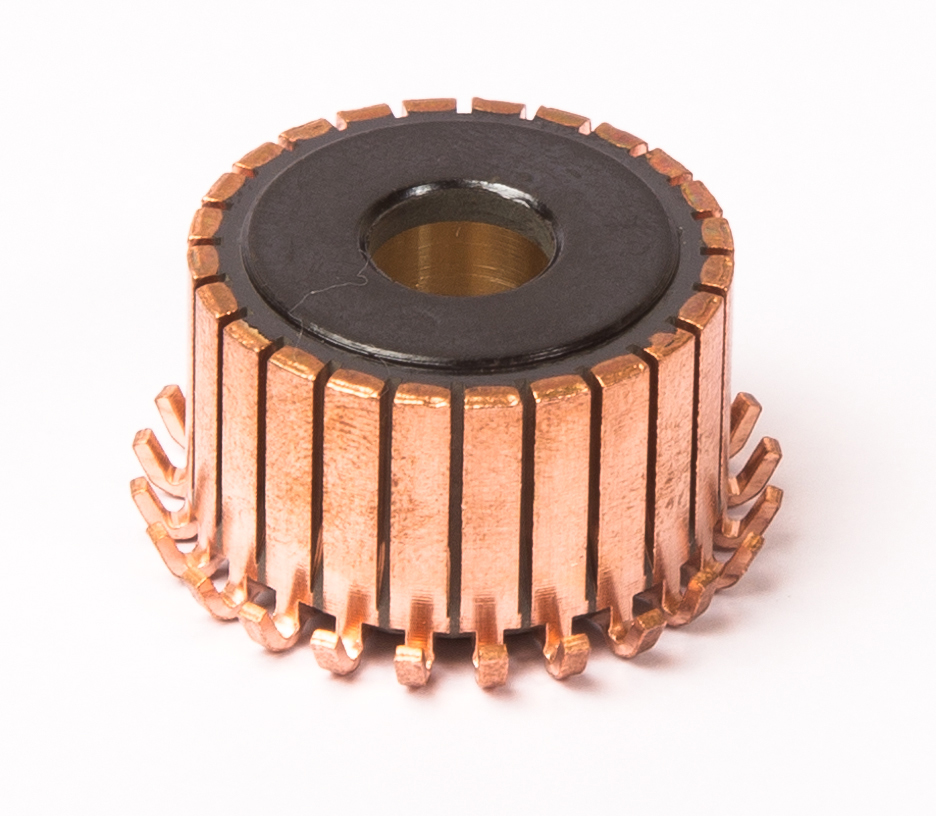

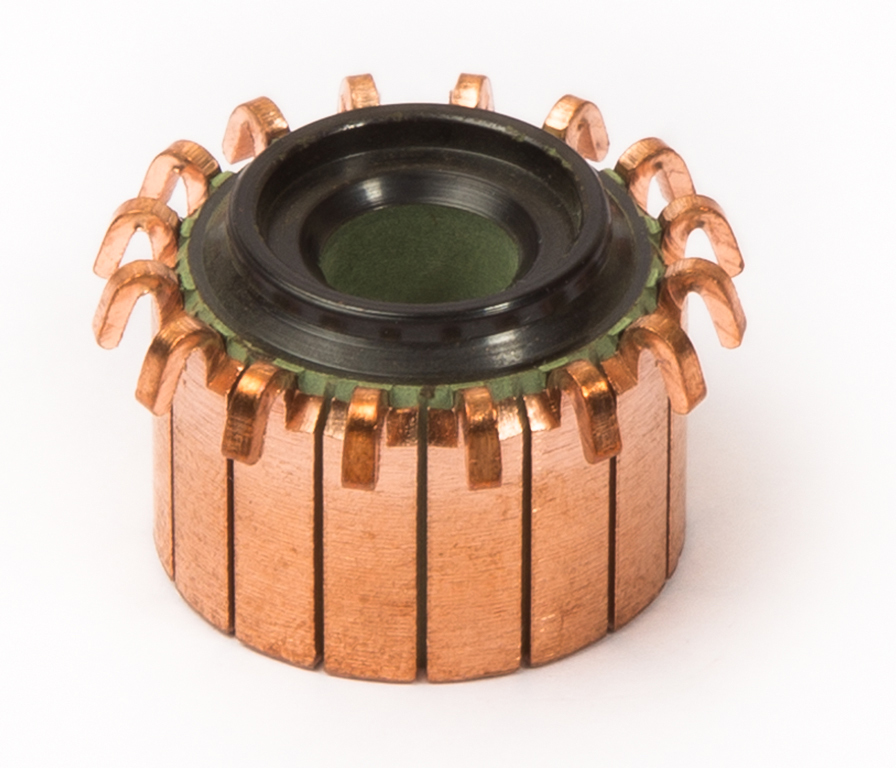

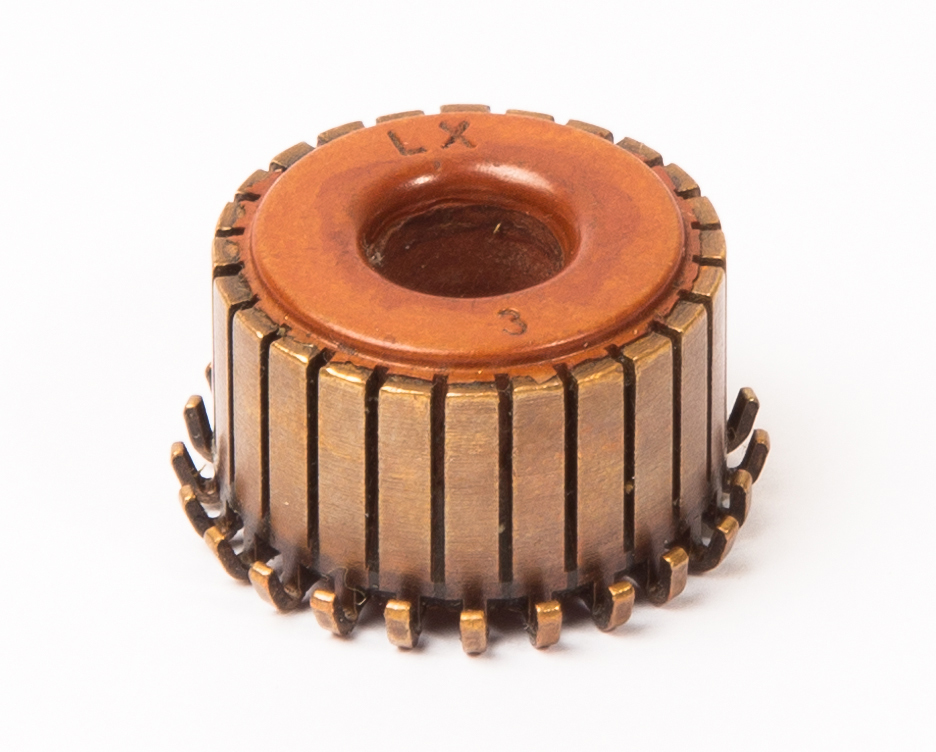

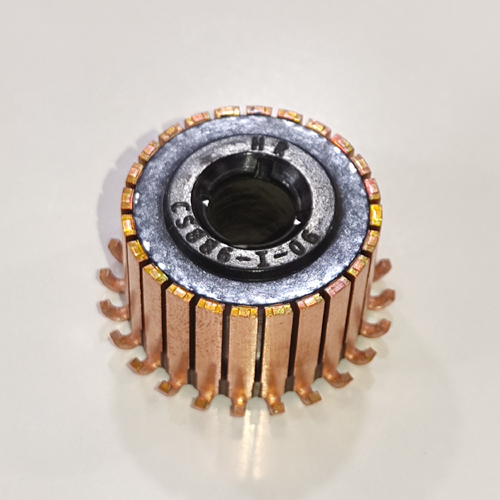

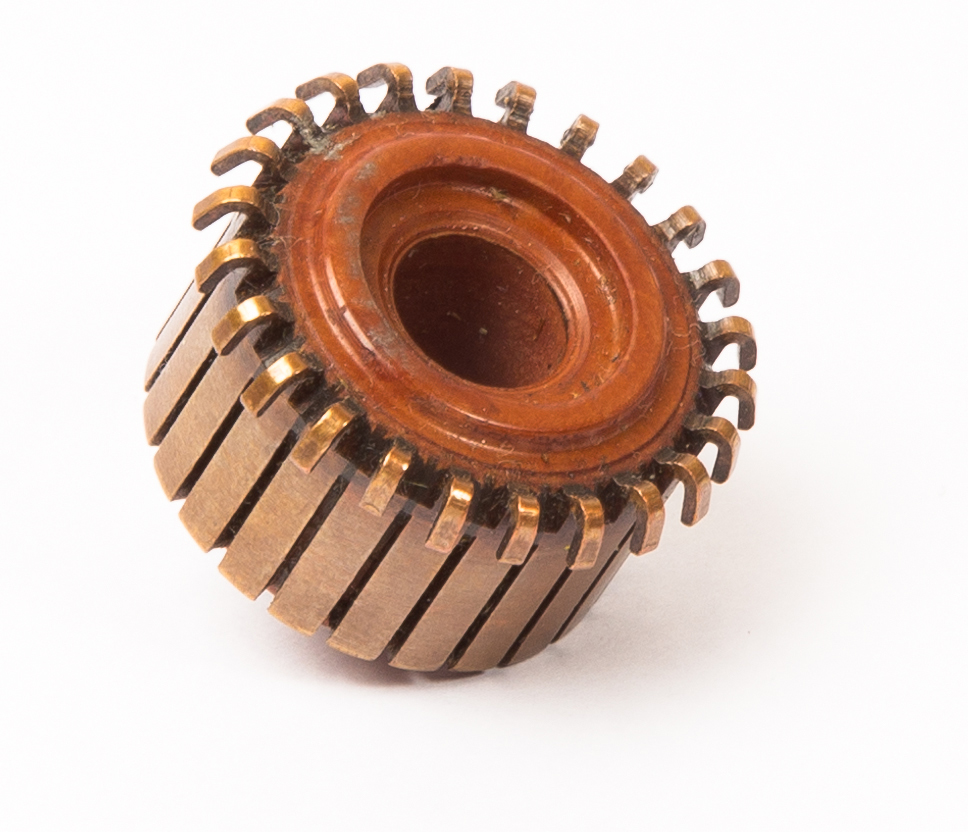

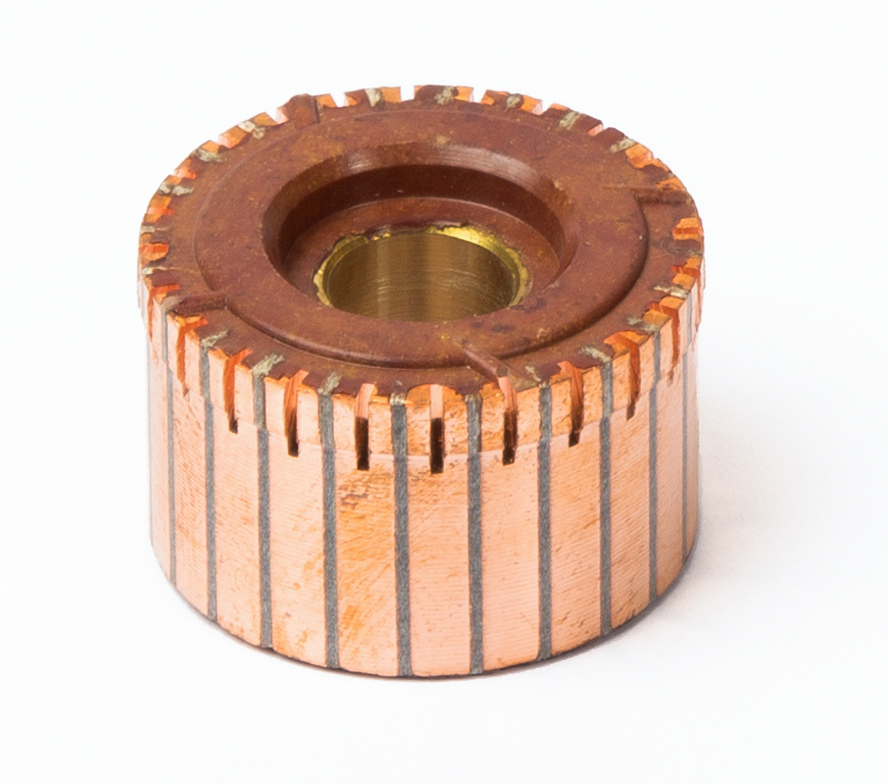

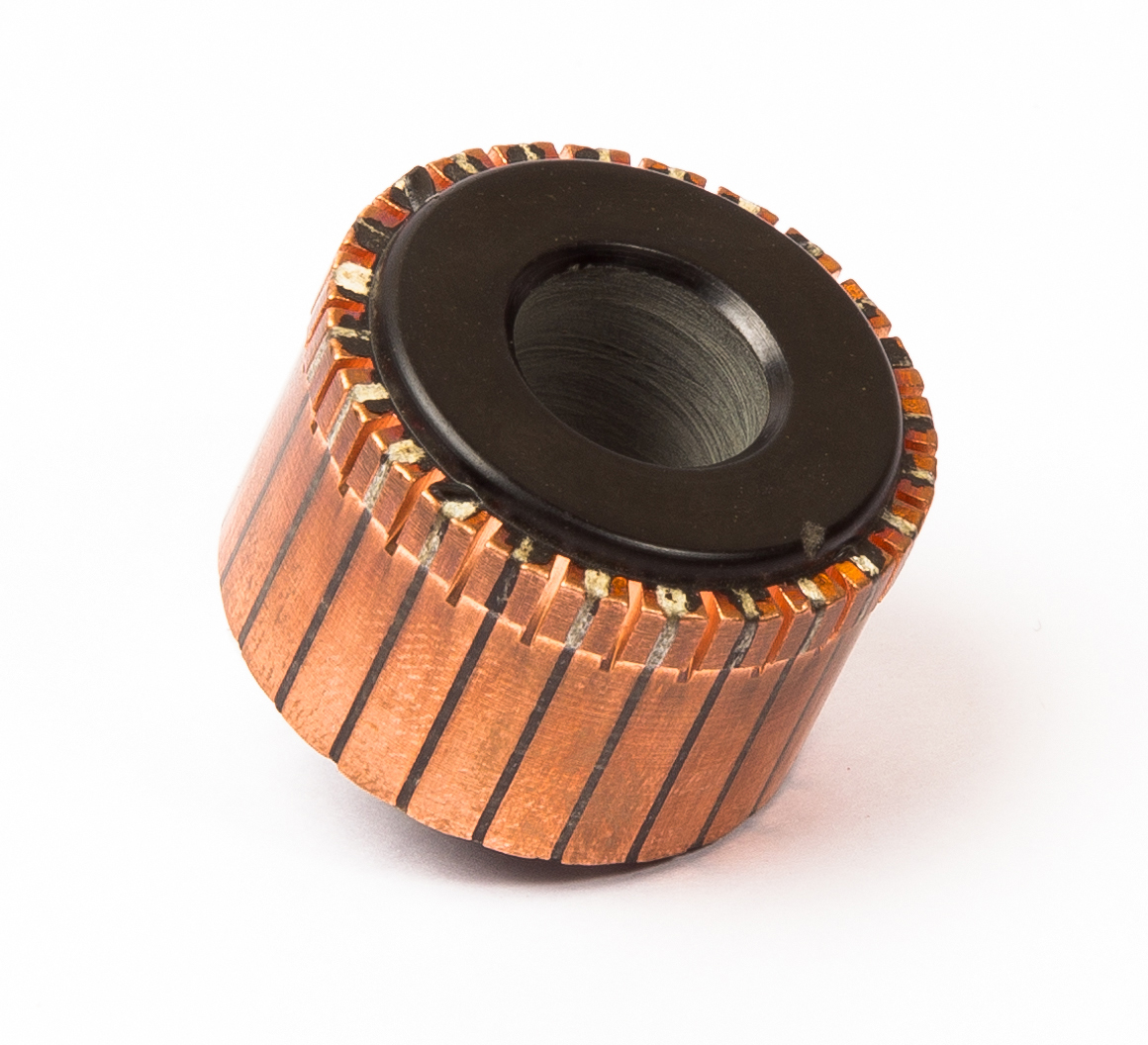

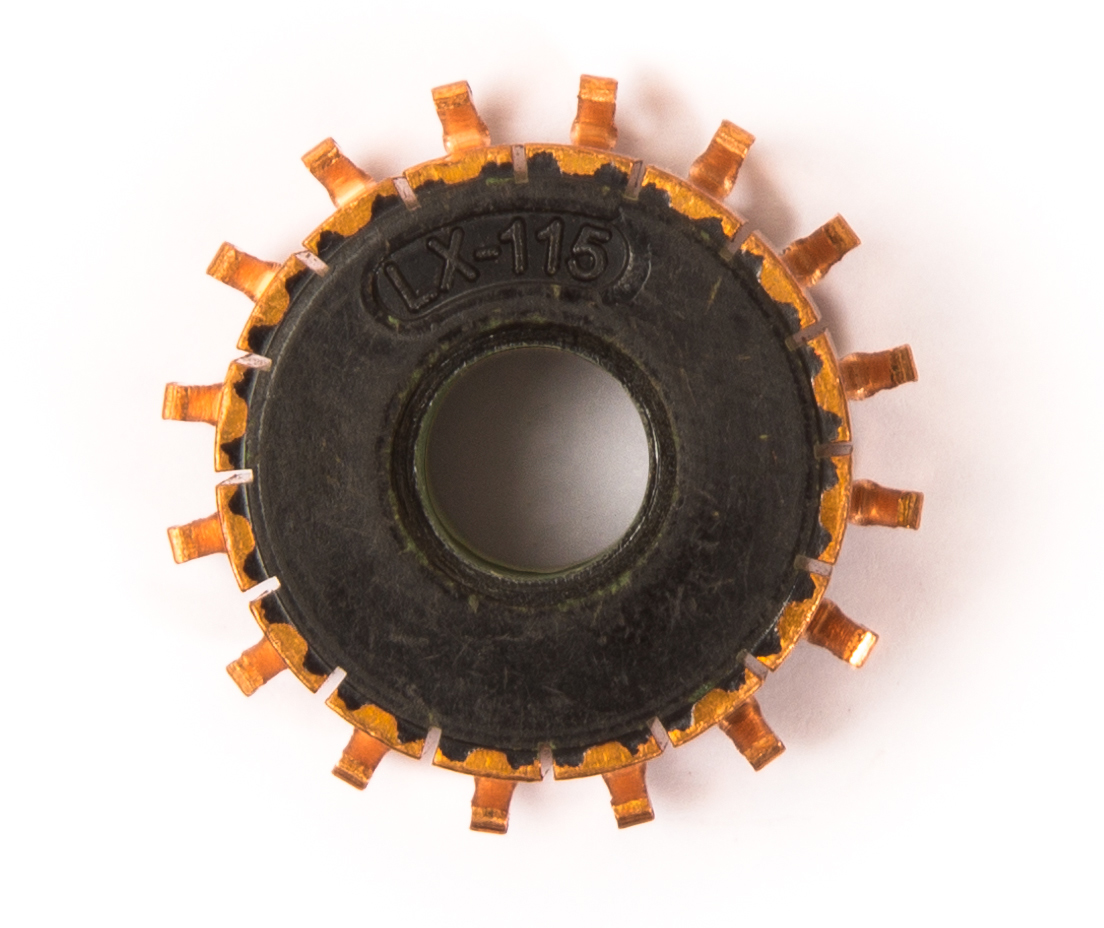

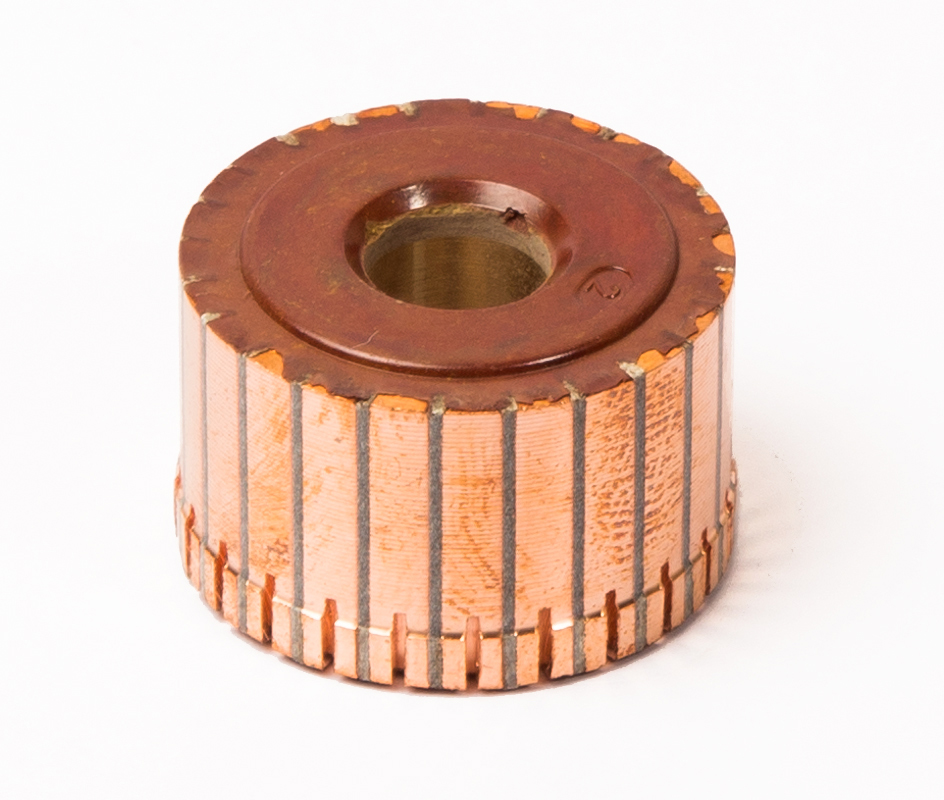

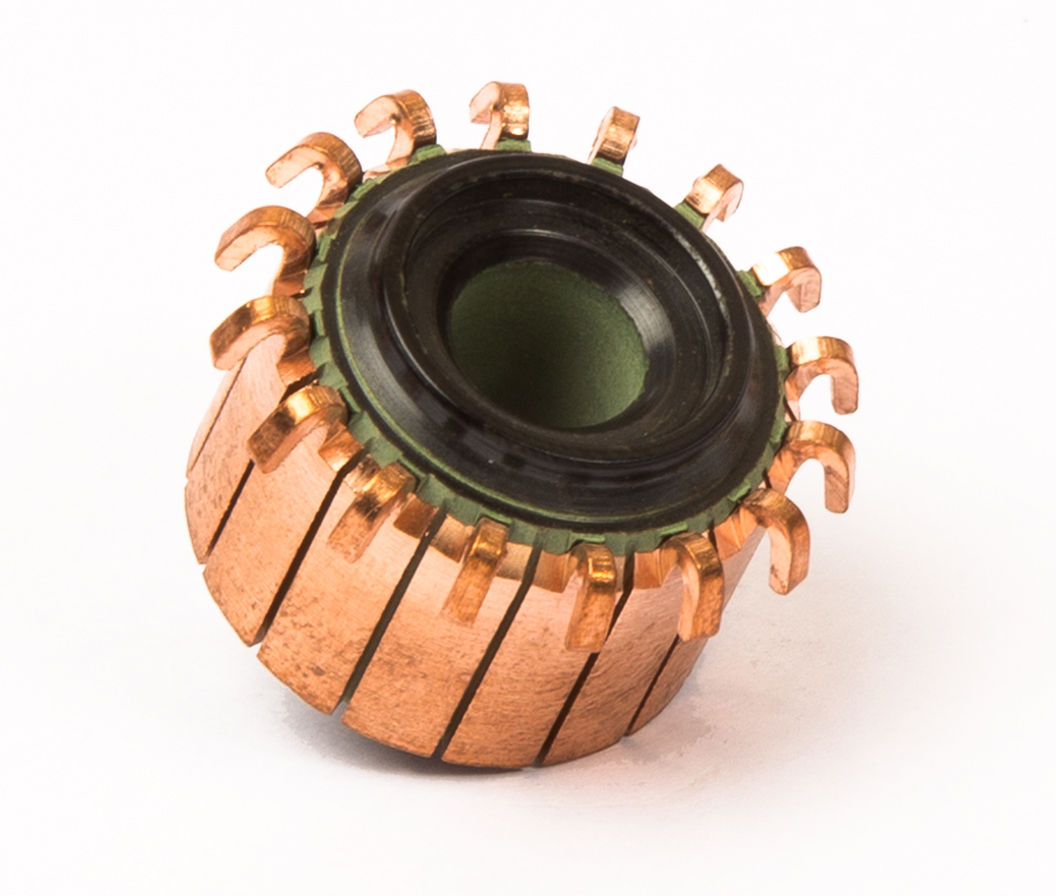

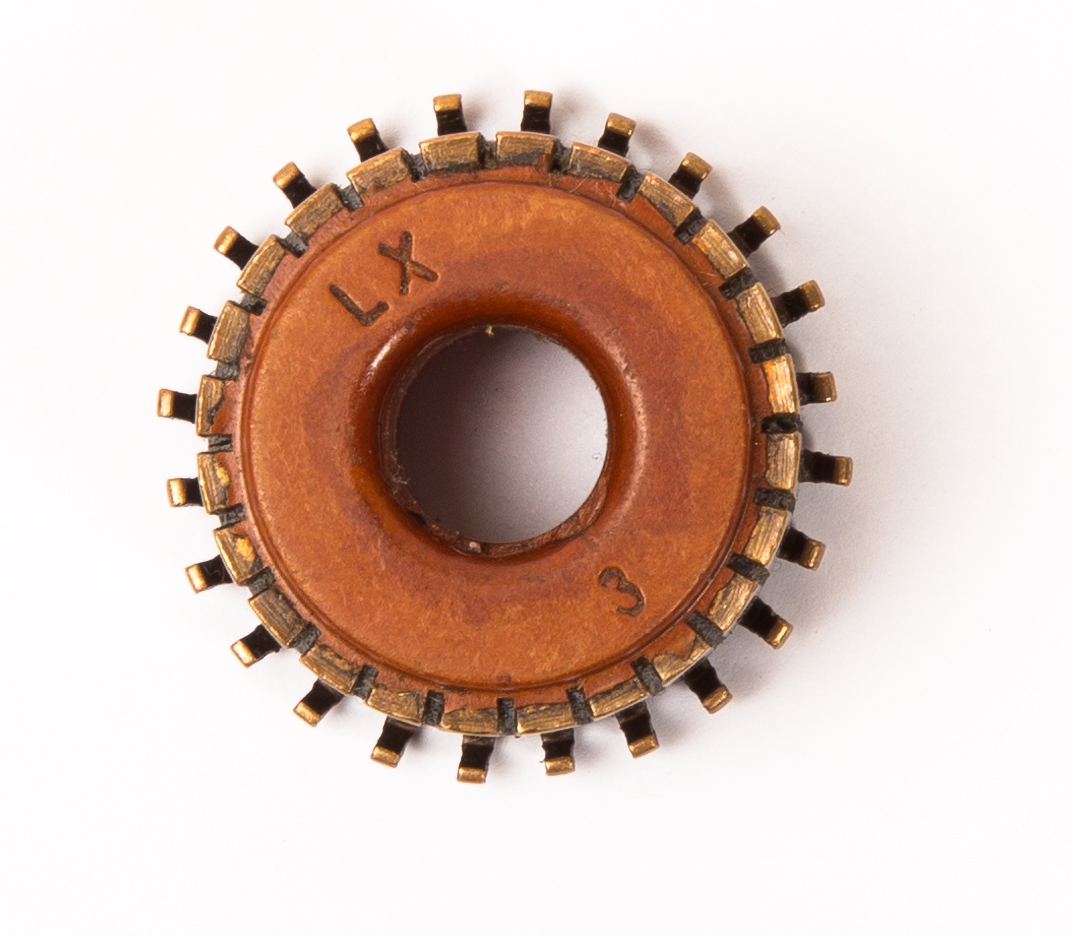

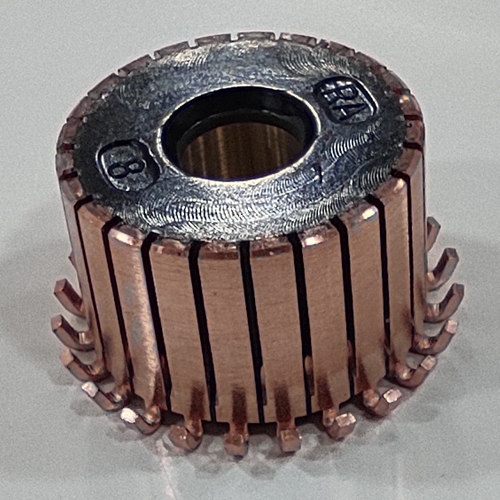

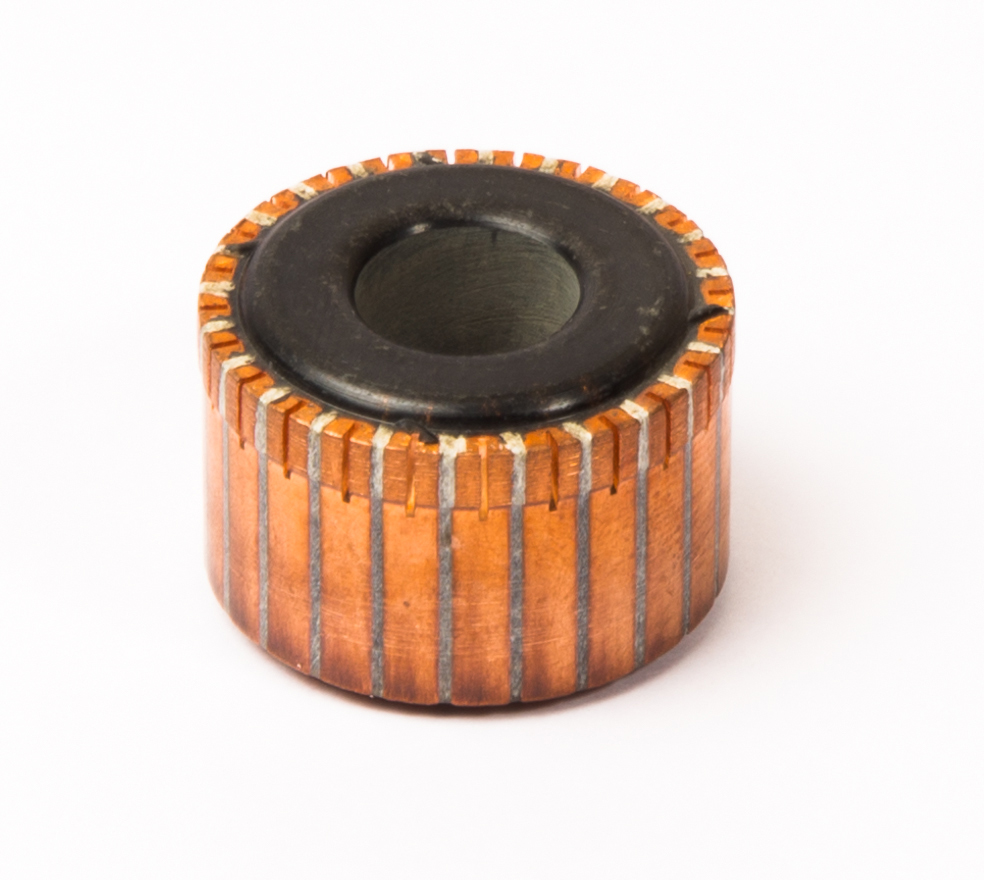

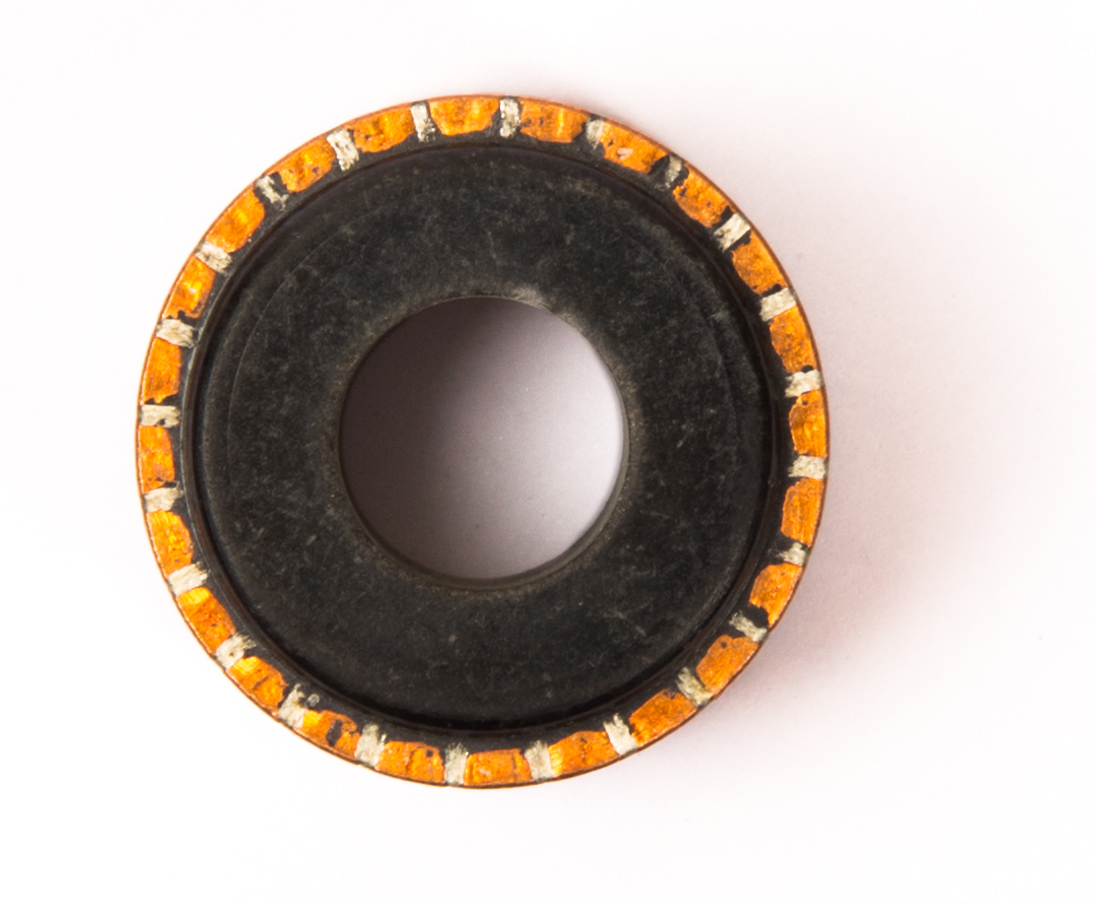

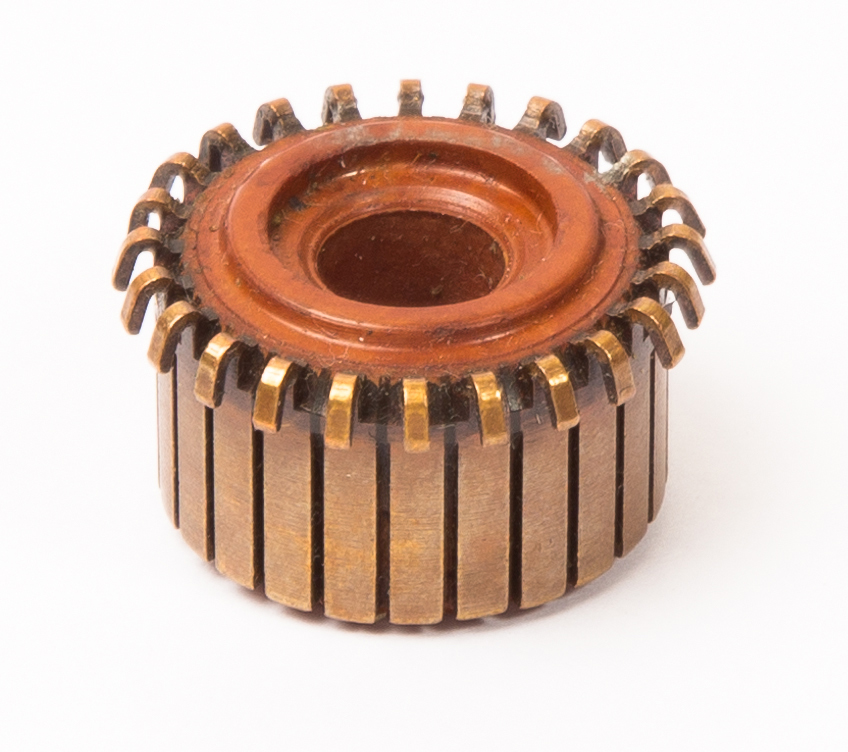

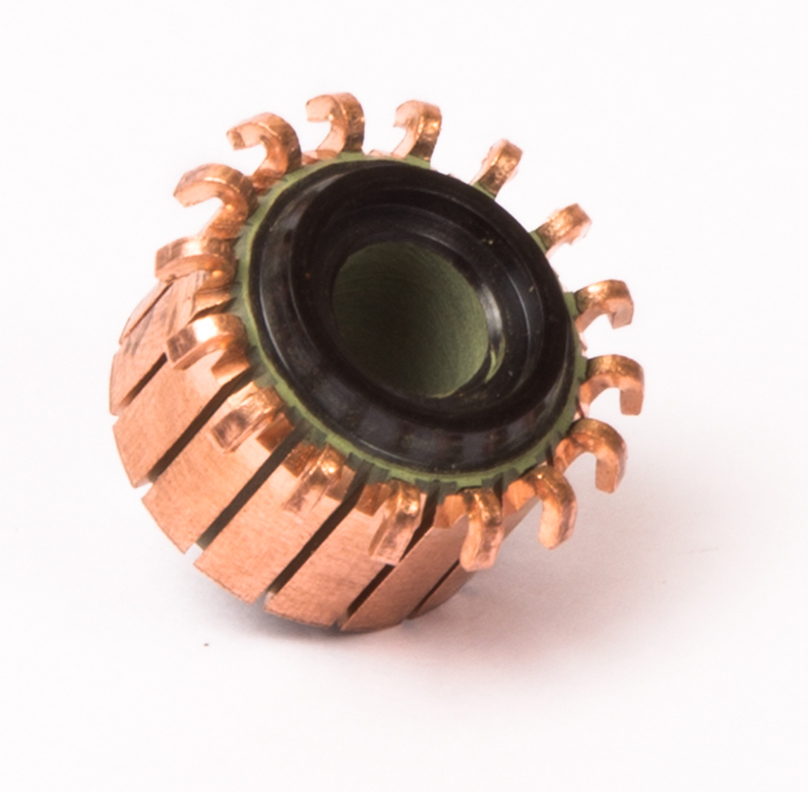

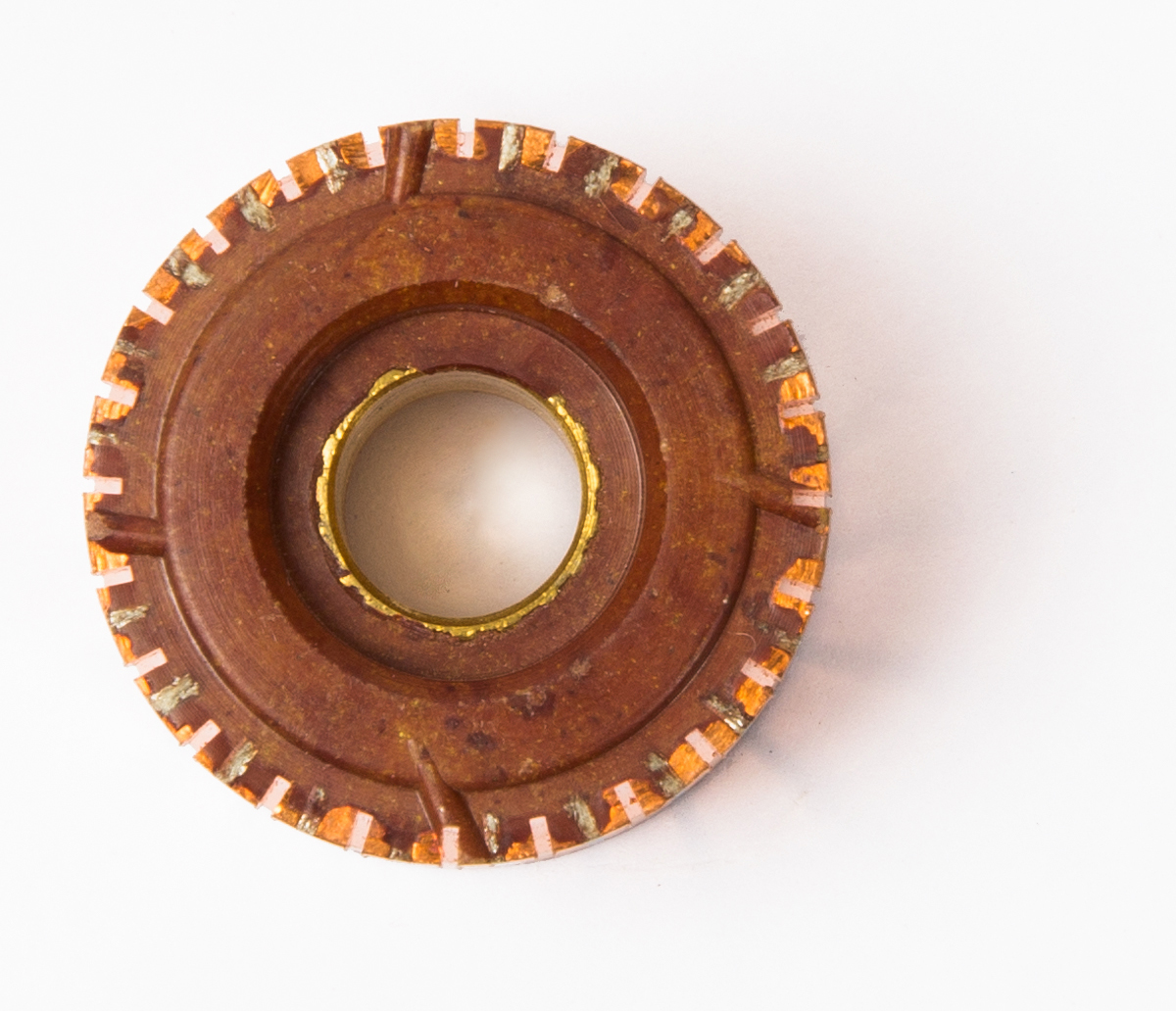

CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
MODEL NO. SLOT TYPE/HOOK TYPE SEGMENT NO OD ID HEIGHT COPPER HEIGHT COPPER HEIGHT
C-04GHOOK TYPE 12 23 10 18.5 17.5
C-04J HOOK TYPE 12 23 8 18.5 17.5
C-04K HOOK TYPE 12 23 9 18.5 17.5
C-04H HOOK TYPE 12 23 12 18.5 17.5
C-05C HOOK TYPE 20 30.3 9.963 18.8 18.7
C-12D HOOK TYPE 12 18.2 8.02 13.6 13.6
C-12K HOOK TYPE 12 18.2 8.02 14 13
C-39 HOOK TYPE 10 19.4 8.15 16.5 15.6
C-39A HOOK TYPE 10 18.3 8.15 15.2 15
C-39B HOOK TYPE 10 19.4 8.15 16.5 15.6
C-44 HOOK TYPE 14 24.2 8 18.5 17.5
C-44A HOOK TYPE 14 24.2 10 18.5 17.5
C-45 SLOT TYPE 24 44.5 14 30 27
C-45A SLOT TYPE 24 45 15 35 32
C-45C/D SLOT TYPE 24 45 12 35 32
C-55 HOOK TYPE 14 24.3 8 19.7 18.7
C-57 HOOK TYPE 10 17.3 8.94 16 15.7
C-78 HOOK TYPE 10 15.1 7 14.5 13
C-80 HOOK TYPE 11 20 6 20 18.7
C-82 HOOK TYPE 10 15.5 8.94 16.5 16.2
C-83 HOOK TYPE 12 15.2 6 12.2 12.1
C-85 SLOT TYPE 23 41.7 18.87 32.5 31
C-90 HOOK TYPE 14 19.5 8 15.6 15.6
C-1127 HOOK TYPE 12 28.4 14 23.5 23.1
D-04E HOOK TYPE 12 23 8 18.5 17.5
D-12 SLOT TYPE 24 28.5 12 21.8 18
D-12A SLOT TYPE 24 28.5 12 21.8 18
D-12B SLOT TYPE 24 28.5 12 21.8 18
D-12ED SLOT TYPE 30 28.5 12 21.8 18

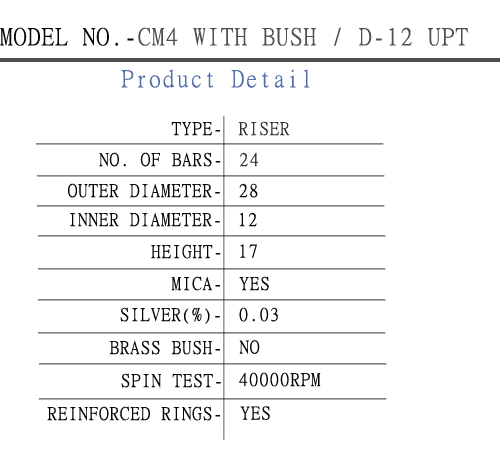

D-12UPT SLOT TYPE 24 28.5 12 21.8 18
D-13 SLOT TYPE 24 24 10 17 14
D-13G SLOT TYPE 24 24 9.98 17.5 14
D-15C HOOK TYPE 24 21.5 8.02 13 12.5
D-17K SLOT TYPE 24 28.5 12 20.5 19
D-17M SLOT TYPE 24 28.5 13 20.5 19
D-28 HOOK TYPE 16 25 10 20 19.5
D-28A HOOK TYPE 16 25 10 20 19.5
D-28B HOOK TYPE 16 25 10 16.3 16.3
D-30 SLOT TYPE 48 45 15.5 30 28
D-30B SLOT TYPE 48 45 16 30 28
D-37A HOOK TYPE 12 16.7 8 14.5 14.4
D-40B HOOK TYPE 24 23 8 13.75 13.72
D-40C HOOK TYPE 24 23 8 14.5 13.75
D-047D SLOT TYPE 32 35.5 14.5 23 20
D-49A HOOK TYPE 18 22.93 8 15.5 14
D-49B HOOK TYPE 18 22.93 5.994 15.6 14
D-51 HOOK TYPE 18 22.9 8 18.2 17.2
D-51A HOOK TYPE 18 22.9 12 18.2 17.2
D-51B HOOK TYPE 18 22.9 9 18.2 17.2
D-54B SLOT TYPE 32 34 12.75 27.4 24.7
D-54D-APT SLOT TYPE 32 35.5 12.75 27.4 23.2
D-55B SLOT TYPE 28 28.8 12 24.6 19.2
D-55E SLOT TYPE 28 28.7 12 24.6 19.2
D-59 HOOK TYPE 12 29.9 17.6 21.6 21.5
D-59A HOOK TYPE 12 29.9 17 21.6 21.5
D-71 SLOT TYPE 24 32 13 24 21
D-71B SLOT TYPE 36 32 1324 21
D-80 HOOK TYPE 24 30.3 12 22.8 21
D-81 HOOK TYPE 20 20.7 8.12 19.7 16.6
D-81A HOOK TYPE 20 20.7 8 19.7 16.6
D-86 SLOT TYPE 24 36.5 13 25 22.5
D-86B SLOT TYPE 24 36.5 13 25 22.5
D-90 HOOK TYPE 16 23 10 15.5 15.3
D-91 HOOK TYPE 7 12.7 4 10 9.2
D-92E HOOK TYPE 20 30.3 8 17.3 17.3
D-92G HOOK TYPE 20 30.3 8 17.3 17.3
D-93 HOOK TYPE 18 37 14 23 22
D-99F HOOK TYPE 22 28.5 10 20.2 18.46
D-100 HOOK TYPE 24 28.5 12 20 17.8
D-100A HOOK TYPE 24 28.5 12 20 17.8
D-100B HOOK TYPE 24 28 12 22 18.5
D-100C HOOK TYPE 24 28.5 12 20 17.8
D-106 HOOK TYPE 32 38.5 15 28.5 28
D-106C HOOK TYPE 32 38.5 12 21.5 21
D-106D HOOK TYPE 32 38.5 17 28.5 28
D-106E HOOK TYPE 32 38.5 17 28.5 28
D-106G HOOK TYPE 32 38.5 16 28.5 28
D-106F HOOK TYPE 32 38.5 18 28.5 28
D-106H HOOK TYPE 32 38.5 17.03 28.5 28
D-106K HOOK TYPE 32 38.5 12 28.5 28
D-106M HOOK TYPE 32 38.5 14 28.5 28
D-106N HOOK TYPE 32 38.5 15 28.5 28
D-121 SLOT TYPE 24 28.5 12 21.8 18
D-121A SLOT TYPE 24 28.5 12 21.8 18
D-128 HOOK TYPE 12 24.3 12 21.5 21.5
D-128A HOOK TYPE 21 24.3 12 21.5 21.5
D-128B HOOK TYPE 21 24.3 12 21.5 21.5
D-128E HOOK TYPE 18 24.3 12 21.5 21.5
D-129F HOOK TYPE 24 24.6 10 19.2 17.8
D-129F HOOK TYPE 24 24.6 10 19.2 17.8
D-134F HOOK TYPE 24 25.3 9 19 14.5
D-141 HOOK TYPE 20 33.5 8 28 22.88
D-158 HOOK TYPE 24 28 12 23.4 17
D-158A/B/C/D HOOK TYPE 24 28 12 21 17
D-164B/D HOOK TYPE 24 22 10 17.9 15.5
D-164H/L HOOK TYPE 24 22 10 17.9 15.5
D-171A HOOK TYPE 22 28.55 10 20 18.4
D-171B HOOK TYPE 22 28.55 10 20 18.4
D-171C HOOK TYPE 22 28.55 10.5 20 18.4
D-171D HOOK TYPE 22 28.55 11.92 20 18.4
D-171E HOOK TYPE 22 28.55 10.5 20 18.4
D-171J HOOK TYPE 22 28.55 11.92 20 18.4
D-171G HOOK TYPE 22 28.55 10.5 20 18.4
D-171M HOOK TYPE 22 28.5 14.32 20 18.4
D-171N HOOK TYPE 22 28.6 12.05 15.5 15
D-171S HOOK TYPE 22 28.63 10 26.75 17.9
D-171T HOOK TYPE 22 28.55 10 19.05 17.9
D-177B HOOK TYPE 24 23.7 11 18 15.5
D-177C HOOK TYPE 24 23.7 8 18.6 15
D-189A HOOK TYPE 20 48 19 35 34
D-189E HOOK TYPE 20 48 15 29.5 28
D-189H HOOK TYPE 20 48 17 35 35
D-190A HOOK TYPE 28 36 14 24.7 23.45
D-193A HOOK TYPE 20 28.6 8 17.5 17.5
D-201/A SLOT TYPE 14 43.2 17.72 31.75 30
D-206 SLOT TYPE 24 29.5 12 25 20
D-206C SLOT TYPE 24 29.5 12 22.5 20
D-206D SLOT TYPE 24 29.5 12 22.5 20
D-211 HOOK TYPE 48 50 16 29 27
D-216 HOOK TYPE 20 30.3 18.35 17.5 17.5
D-220B HOOK TYPE 24 22.65 9.5 18.9 15
D-230A SLOT TYPE 36 28.2 12 22 20
D-268A HOOK TYPE 16 32 12 22 21
D-268D HOOK TYPE 16 32 12 22 21
D-268E HOOK TYPE 16 32 12.04 22 21
D-268G HOOK TYPE 16 32 11.9 22 21
D-268H HOOK TYPE 16 32 12 22 21
D-268M HOOK TYPE 16 32 12 22 21
D-268N HOOK TYPE 16 32 12.7 22 21
D-268T HOOK TYPE 16 32 17.5 22 21
D-269D HOOK TYPE 40 48 19 27 26
D-271 HOOK TYPE 18 28.55 8 20 18.5
D-271A HOOK TYPE 18 28.55 10 20 18.5
D-271C HOOK TYPE 18 28.5 12 20 18.5
D-271D HOOK TYPE 18 28.5 12 20 18.5
D-290A HOOK TYPE 32 35 15.8 24.5 21
D-290B HOOK TYPE 32 35 15 27.5 27
D-290C HOOK TYPE 16 35 15 27.5 27
D-328A HOOK TYPE 22 28.6 12 22.6 20.9
D-329A HOOK TYPE 16 32 8 22.35 22.35
D-330 HOOK TYPE 16 32 8 19.35 19.35
D-330A HOOK TYPE 16 32 10 19.35 19.35
D-345A HOOK TYPE 12 23 10 15.5 15.3
D-345C HOOK TYPE 12 23 8 15.5 15.3
D-345D HOOK TYPE 12 23 10 15.5 15.3
D-345T HOOK TYPE 12 23 8 15.5 15.3
D-348C HOOK TYPE 16 28 8 18 18
D-348R/S HOOK TYPE 16 28 10.04 18 18
D-348N HOOK TYPE 16 28 8 18 18
D-348K HOOK TYPE 16 28 15 18 18
D-349E SLOT TYPE 21 28.5 11.29 26 23.5
D-351A/B/D HOOK TYPE 12 23 8 18.3 17.3
D-358A HOOK TYPE 20 20.8 8 19.6 18
D-371 HOOK TYPE 22 28.5 10 20 18.5
D-401 HOOK TYPE 24 23 9 13.75 13.75
D-440B HOOK TYPE 12 28 10 20 19.5
D-440C HOOK TYPE 12 28 12 20 19.5
D-467E HOOK TYPE 16 23 10.04 16.3 15.2
D-467F HOOK TYPE 16 23 10.04 16.3 15.2
D-481C HOOK TYPE 16 32 15 26 25
D-487 HOOK TYPE 10 22.2 8 17 16.5
D-488 HOOK TYPE 20 40.3 12 26 26
D-488G HOOK TYPE 20 40.3 17 26 26
D-488H HOOK TYPE 24 40.3 17 26 26
D-492B HOOK TYPE 10 22.3 9.4 21 18.8
D-494B HOOK TYPE 16 38.5 15 27.5 27
D-494C HOOK TYPE 16 38.4 17 29.2 28.5
D-495A HOOK TYPE 12 25.2 10.02 22 21
D-495B HOOK TYPE 12 25 12 22 21
D-496/A HOOK TYPE 16 20.2 8 13.5 13.5
D-501C HOOK TYPE 20 40.3 16 32 31
D-504A HOOK TYPE 10 22.2 10 17 16.5
D-510 HOOK TYPE 12 23 8 20 19
D-510C HOOK TYPE 12 23 10 20 19
D-510D HOOK TYPE 12 23 8 20 19
D-511A HOOK TYPE 20 28 8 19.6 15.6
D-511B HOOK TYPE 20 28 8 18.6 15.6
D-511C HOOK TYPE 20 28 8 18.6 16.6
D-512B HOOK TYPE 10 18.32 8 34.1 33.6
D-514A HOOK TYPE 20 30.3 8 24.3 17.5
D-514B HOOK TYPE 20 30.3 8 23.3 17.5
D-516D HOOK TYPE 7 14.3 6 11.5 10
D-516E HOOK TYPE 7 14.3 5.99 11.5 10
D-517 HOOK TYPE 12 24.2 12 18.5 18
D-517A HOOK TYPE 12 24.2 12 18.5 18
D-519C HOOK TYPE 10 22.2 9.47 20.6 19.6
D-519D HOOK TYPE 10 22.2 9.47 20.6 19.6
D-526 HOOK TYPE 20 28 8 18.5 16.3
D-527 HOOK TYPE 12 23 8 20.5 17.3
D-553A HOOK TYPE 16 32 11.9 22 21
D-553E HOOK TYPE 16 32 11.9 22 21
D-553G HOOK TYPE 16 32 12 22 21
D-553M HOOK TYPE 16 32 12.84 22 21
D-553L HOOK TYPE 16 32 12.6 22 21
D-559 HOOK TYPE 10 22.2 9 18 17.5
D-607 SLOT TYPE 48 51 19 28 25
D-607A SLOT TYPE 48 51 19.05 28 25
D-640/A/C HOOK TYPE12 18.9 10.04 13.5 13
D-640B HOOK TYPE 16 18.9 10.04 13.5 13
D-640D HOOK TYPE 12 18.9 8.12 13.5 13
D-640E HOOK TYPE 12 18.9 10.05 13.5 13
D-640M HOOK TYPE 16 18.98 13.5 13
D-642B HOOK TYPE 16 26.4 8 23.7 14.1
D-662/A HOOK TYPE 20 30.3 8 17.7 17.5
D-697 HOOK TYPE 24 43 18 34 33
D-697A HOOK TYPE 24 43 20 34 33
D-713 SLOT TYPE 40 45 18 29.5 27.5
D-760 HOOK TYPE 24 22.2 7.986 19.6 13.45
D-765 HOOK TYPE38 53 23 27 26.5
D-786 HOOK TYPE 1837 14 20 19
D-788B HOOK TYPE 28 30 8 22 20
D-846/A/C/D SLOT TYPE 32 37 15 30 24.5
D-846B SLOT TYPE 32 37 16 30 24.8
D-846AB SLOT TYPE 32 37 14 30 24.8
D-846APT SLOT TYPE 32 38.5 15 30 24.8
D-846E SLOT TYPE 32 37 13 30 24.8
D-846N SLOT TYPE 32 38.5 15 30 24.8
D-846H SLOT TYPE 32 37 15 33.5 28
D-846J/Q SLOT TYPE 32 37 14 33.5 28
D-846K SLOT TYPE 32 37 16 33.5 28
D-846BC SLOT TYPE 32 36.5 14 29 25
D-846EC SLOT TYPE 32 37 13 27 23
D-846TC SLOT TYPE 32 36.5 14 29 25
D-857 HOOK TYPE 24 27 12 21 17.3
D-857A/CHOOK TYPE 24 27 10.5 21 17.3
D-857D HOOK TYPE 24 27 10.5 21 17.3
D-857E HOOK TYPE 24 27.2 12 21 17.3
D-885 SLOT TYPE 24 28.5 12 21.5 18
D-885H SLOT TYPE 24 28.5 12 21.5 18
D-935A/B/C HOOK TYPE 24 23.2 10 18.9 14.7
D-935D HOOK TYPE 24 23.2 12 18.9 14.7
D-935E HOOK TYPE 24 23.2 10 18.9 14.7
D-935F HOOK TYPE 24 23.2 10 19.5 14.7
D-949 HOOK TYPE 12 17.4 9.01 23.8 15.8
D-949B HOOK TYPE 12 17.4 9 23.8 15.8
D-951 HOOK TYPE 12 23 8 20 19.5
D-960/B/C HOOK TYPE 24 22.23 8.04 14.81 14.07
D-3068 HOOK TYPE 24 23.4 11 20 16.2
D-3068A HOOK TYPE 24 23.4 10 20 16.2
J-03B HOOK TYPE 32 43.2 15.5 28.5 28
J-03E HOOK TYPE 32 43.2 17 28.5 28
J-03GHOOK TYPE 32 43.2 17 28.5 28
J-04 HOOK TYPE 16 32 12.04 22 21
J-04A HOOK TYPE 16 32 11.9 22 21
J-04B HOOK TYPE 16 32 12.05 22 21
J-04E HOOK TYPE 16 32 10 22 21
J-04M HOOK TYPE 16 31.95 12.7 20 18.65
J-07A HOOK TYPE 12 19 8.02 13.5 13
J-07B HOOK TYPE 12 19 8.1 13.5 13
J-07C HOOK TYPE 12 19 10 13.5 13
J-07E HOOK TYPE 12 19 8 13.5 13
J-14C HOOK TYPE 24 21.5 6.37 12.2 11.7
J-14D HOOK TYPE 24 21.5 6.35 12.2 11.7
J-14E HOOK TYPE 24 21.5 6.35 12.2 11.7
J-14F HOOK TYPE 24 21.5 8 12.2 11.7
J-15 HOOK TYPE 24 21.5 8 13 12.5
J-15A HOOK TYPE 24 21.5 8.1 13 12.5
J-15G HOOK TYPE 22 21.5 8 12.9 12.5

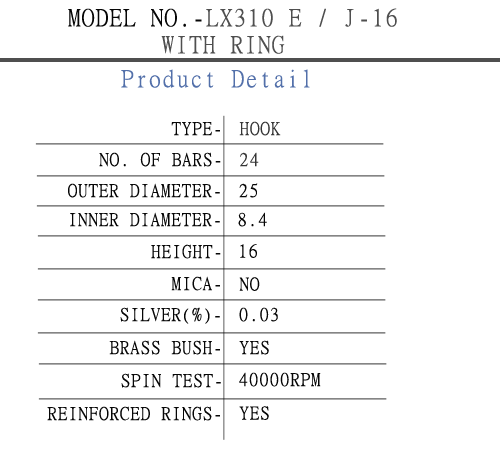

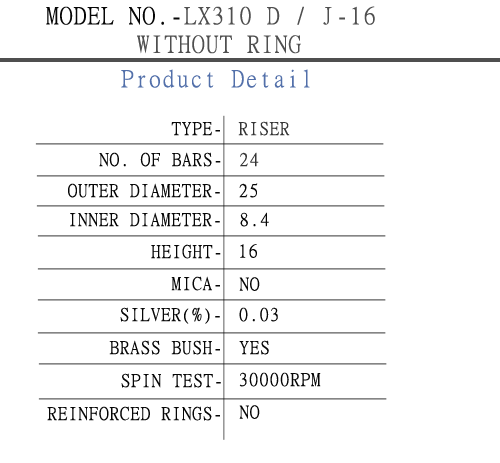

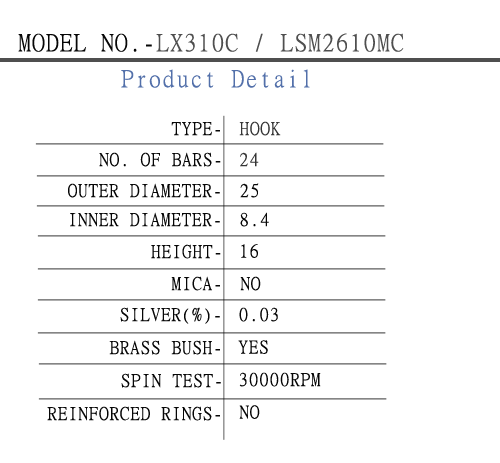

J-16/A/B/C HOOK TYPE 24 25 8.4 16 15.9
J-16D HOOK TYPE 24 25 8.03 16 15.9
J-16E HOOK TYPE 24 25 8.4 16 15.9
J-16W HOOK TYPE 24 25 8.4 16 15.9
J-16K HOOK TYPE 24 25 8.4 16 15
J-18 HOOK TYPE 16 22 8 16.3 15
J-18A HOOK TYPE 16 22 8 16.3 13.8
J-18B HOOK TYPE 16 22 8 16.3 13.8
J-18C HOOK TYPE 16 22 10.04 16.3 14.6
J-18D HOOK TYPE 16 22 8 16.3 15
J-18F HOOK TYPE 16 22.15 8 16.3 14.9
J-29 HOOK TYPE 10 16.02 8.02 15 14
J-36B SLOT TYPE 24 25.2 8.4 16 16
J-36C SLOT TYPE 24 25.2 8.4 16 16
J-60 HOOK TYPE 16 30 12 27.5 26.5
J-61 HOOK TYPE 16 30.2 12.02 28 27.5
J-65 HOOK TYPE 24 28.2 10.5 20 18.3
J-65A HOOK TYPE 24 28.2 11.5 20 18.3
J-65B HOOK TYPE 24 28.1 12 18.2 16.7
J-65C HOOK TYPE 24 28.2 12 20 18.3
J-66 HOOK TYPE 24 28.15 10 20 17
J-66A HOOK TYPE 24 28 10 20 17.5
J-66B HOOK TYPE 24 28.15 10 20 17.5
J-66D HOOK TYPE 24 28.15 8.4 20 17.5
J-68/B/C/E HOOK TYPE 22 23.4 8.15 17.5 16.5
J-68E HOOK TYPE 22 23.4 8.15 17.5 16.5
J-68D HOOK TYPE 22 23.4 8.15 21.9 16.3
J-68L HOOK TYPE 22 23.4 8.15 21.9 16.3
J-68R HOOK TYPE 22 23.4 8.15 21.9 16.3
J-68T HOOK TYPE 22 23.4 9.62 18.5 16.5
J-68T HOOK TYPE 22 23.4 10.56 18.5 16.5
J-68F HOOK TYPE 22 23.4 8.14 17.5 16.5
J-68A HOOK TYPE 22 23.4 10 17.5 16.5
J-71 HOOK TYPE 24 23.2 10 16.4 14.4
J-71A HOOK TYPE 24 23.2 10 17.8 14.4
J-71D HOOK TYPE 24 23.2 11 17.8 14.4
J-71E HOOK TYPE 24 23.2 10 17.8 14.4
J-71F HOOK TYPE 24 23.2 10 17.8 14.4
J-71G-T HOOK TYPE 24 23.2 10 16.4 14.4
J-73 HOOK TYPE 12 20 8.15 16 16
J-74B HOOK TYPE 24 22 10 16 15
J-074C HOOK TYPE 12 22 10 16 15
J-074D HOOK TYPE 24 22 7 12 11
J-074E HOOK TYPE 12 22 8 16 15
J-74G HOOK TYPE 10 22 8 16 15
J-74L HOOK TYPE 24 22 9 12 11
J-74N HOOK TYPE 12 22 8 16 14.55
J-75/L HOOK TYPE 20 28 8 18.5 16.3
J-81A HOOK TYPE 24 25.45 10 17.2 15.4
J-85A HOOK TYPE 24 25.5 10 20 16.8
J-85B HOOK TYPE 24 25.5 10 19 16.8
J-86 HOOK TYPE 22 23.4 9.6 19 16.5
J-86C HOOK TYPE 22 23.4 8.15 19 16.5
J-86D HOOK TYPE 22 23.4 9.6 19 16.5
J-86E HOOK TYPE 22 23.4 9.6 1916.5
J-86F HOOK TYPE 22 23.4 10.58 19 16.5
J-86K HOOK TYPE 22 23.4 10.15 19 16.5
J-86R HOOK TYPE 22 23.4 11.7 19.5 17.5
J-88 HOOK TYPE 22 23.4 8 16.5 16.5
J-89 HOOK TYPE 20 18 8 13.3 12.3
J-93B HOOK TYPE 13 23.4 9.13 19.5 19.2
J-97 HOOK TYPE 32 37 12.5 25.8 21.3
J-101 HOOK TYPE 22 25.4 10.56 22.5 17.9
J-102 HOOK TYPE 22 22.25 8.14 20.5 16.8
J-102A HOOK TYPE 22 22.25 8.14 20.5 16.8
J-107B HOOK TYPE 32 32 12 21 18.3
J-111 HOOK TYPE 20 20.5 8.02 15.5 14.2
J-115A HOOK TYPE 24 21.5 8.1 12.9 12.4
J-115C HOOK TYPE 24 21.5 10.15 12.9 12.4
J-116 HOOK TYPE 24 25 8 18 16.4
J-116A HOOK TYPE 24 25 9 18 16.4
J-124 HOOK TYPE 32 25.2 8 15 14
J-124A HOOK TYPE 32 25.2 10.04 15 14
J-160A HOOK TYPE24 18.7 4.01 13.1 11.7
J-165/AHOOK TYPE2428121918
J-165B HOOK TYPE 24 28 12 19 18
J-168P SLOT TYPE 23 20.3 8 20.4 13
J-203 HOOK TYPE 23 17.4 9.01 23.8 15.8
J-203E HOOK TYPE 12 17.4 9.01 20.7 15.8
J-226 HOOK TYPE 24 25 8.4 17 16
J-226N HOOK TYPE 24 25 8.4 17 17
J-226Y HOOK TYPE 24 25 10 17.2 17.2
J-226T HOOK TYPE 24 25 8.4 17 17
J-226Z HOOK TYPE 24 25 10 17.2 17.2
J-229 HOOK TYPE 12 18.9 8 13.5 13
J-229-T HOOK TYPE 12 18.9 8 13.5 13
J-229B HOOK TYPE 12 18.9 8 13.5 13
J-229B-T HOOK TYPE 12 18.9 8 13.5 13
J-229C HOOK TYPE 12 18.9 10.04 13.5 13
J-229EHOOK TYPE 12 18.9 8 13.5 13
J-229F HOOK TYPE 12 18.9 6 13.5 13
J-234D HOOK TYPE 16 16.58 13 12
J-234E HOOK TYPE 16 16.5 6.36 13 12
J-234H HOOK TYPE 16 16.5 6.36 13 12
J-311 HOOK TYPE 16 32.2 12.63 20.4 19.3
J-824 HOOK TYPE 24 25.4 10 17.2 17.2
J-828 HOOK TYPE 22 23.4 10.16 20.5 17.5
J-829 HOOK TYPE 22 21.5 8.08 14 13.6
J-841/A HOOK TYPE 22 28.5 10 21.4 19.9
J-876 HOOK TYPE 20 23 8 15.5 14.2
J-876A HOOK TYPE 20 23 8 16.5 14.2
J-880 HOOK TYPE 12 19.05 8.03 13.2 13.1
J-884 HOOK TYPE 12 23.2 8 18.3 17.3
J-884A HOOK TYPE 12 23.2 8 18.3 17.3
J-884B HOOK TYPE 12 23 7 18.5 17.5
J-884E/F/G/H HOOK TYPE 12 23 9.9 18.5 17.4
J-891 HOOK TYPE 22 32.4 9.898 20.2 18.6
J-891A HOOK TYPE 22 32.4 10.5 20.2 18.6
J-891D HOOK TYPE 22 32.4 11.92 20.2 18.6
J-891E HOOK TYPE 12 32.4 8.044 20.2 18.6
J-891F HOOK TYPE 22 32.4 10 20.2 18.6
J-891H HOOK TYPE 22 32.4 9.898 20.2 18.6
J-892G HOOK TYPE 22 28.55 10.6 20 18.3
J-967F HOOK TYPE 22 23.4 8.14 19 16.5
J-985 HOOK TYPE 12 22.4 8.04 18.16 17.52
N-001 HOOK TYPE 12 19.15 9.825 15.8 15.3
N-001B HOOK TYPE 12 19.15 8 15.8 15.3
N-001C HOOK TYPE 12 19.15 8 15.8 15.3
N-001E HOOK TYPE 12 19.15 10 15.8 15.3
N-2216B HOOK TYPE 16 22 8 16.3 15.1
N-2216G HOOK TYPE 16 22 8 16.3 14.9
S-02035 HOOK TYPE 16 18.5 8.8 15.5 13.5
Q-07BSLOT TYPE2344.112.0712.56
Q-154HOOK TYPE 14 30 9.525 23.8 25
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators
CM-4 Commutators

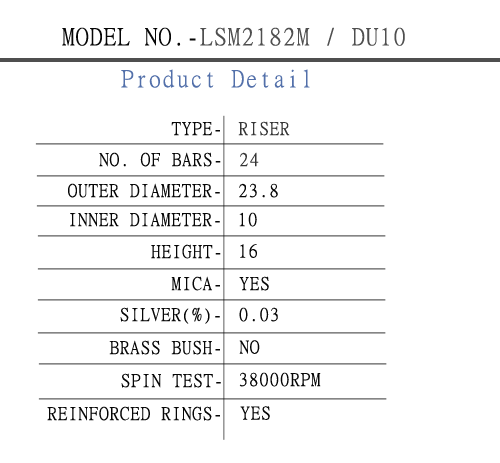

DU-10 Commutators
DU-10 Commutators
DU-10 Commutators
DU-10 Commutators
DU-10 Commutators
DU-10 Commutators

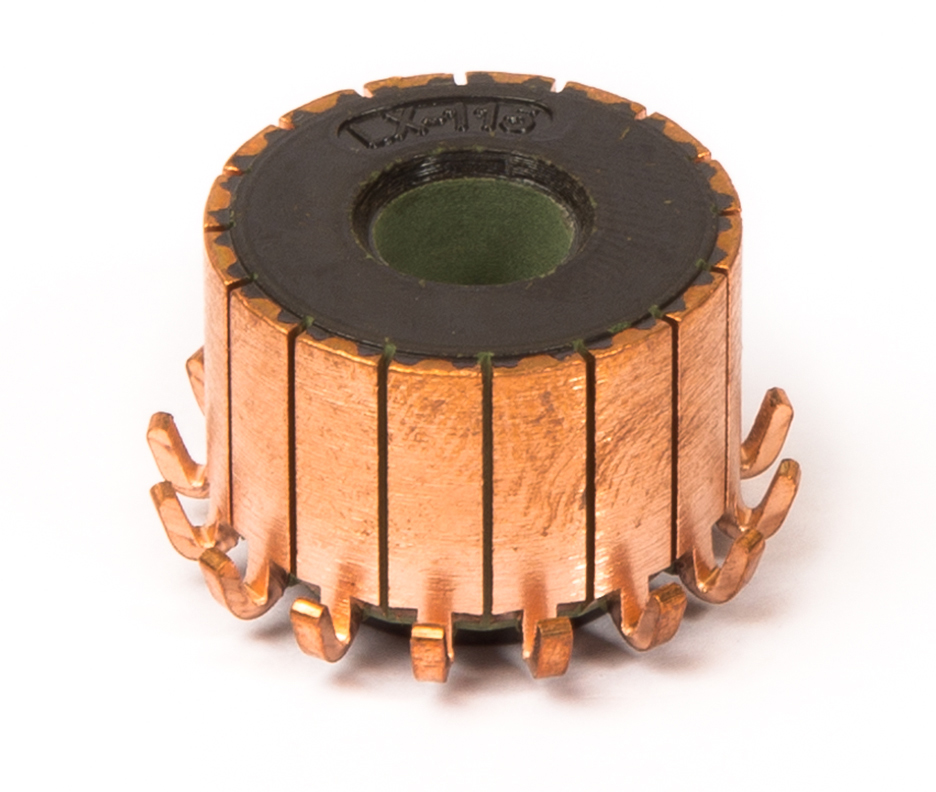

LX-115 Commutators
LX-115 Commutators
LX-115 Commutators
LX-115 Commutators
LX-115 Commutators
LX-115 Commutators

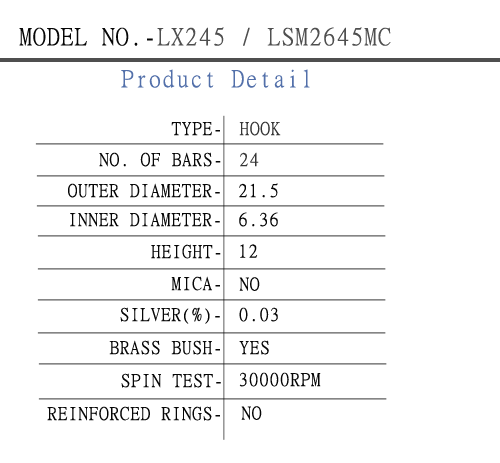

LX-245 Commutators
LX-245 Commutators
LX-245 Commutators
LX-245 Commutators
LX-245 Commutators
LX-245 Commutators
LX-310C Commutators
LX-310C Commutators
LX-310C Commutators
LX-310C Commutators
LX-310C Commutators
LX-310C Commutators
LX-310C Commutators
LX-310M Commutators
LX-310M Commutators
LX-310M Commutators
LX-310M Commutators
LX-310M Commutators
LX-310M Commutators
LX-310M Commutators
LX-310M Commutators

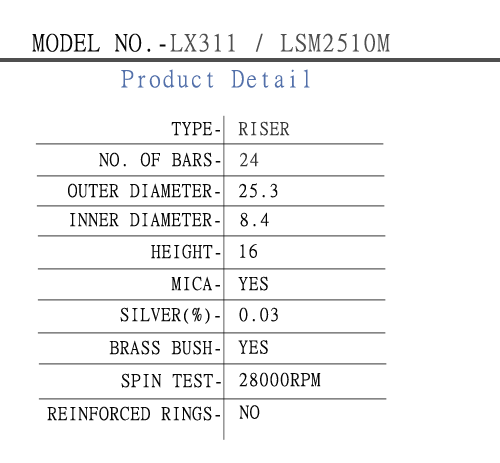

LX-311 Commutators
LX-311 Commutators
LX-311 Commutators
LX-311 Commutators
LX-311 Commutators
LX-311 Commutators
LX-311 Commutators

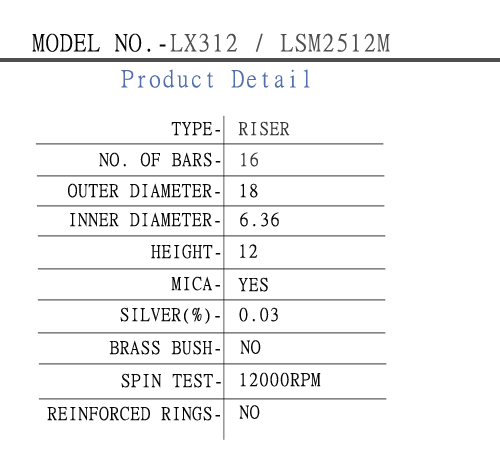

LX-312 Commutators
LX-312 Commutators
LX-312 Commutators
LX-312 Commutators
LX-312 Commutators
LX-312 Commutators
LX-312MC Commutators
LX-312MC Commutators
LX-312MC Commutators
LX-312MC Commutators
LX-312MC Commutators

Join Our Mailing List

For receiving our news and updates in your inbox directly.

SPA EXIM (P) LTD was founded in 1995 at Noida, UP, is a trusted name in the OEM & Aftermarket for its high quality & high precision Moulded Commutator, Carbon Brush, use in Appliances (Mixer Grinder, Hand Blender, Food Processor & RO) Automotive (Starter Motor for Two & Four Wheelers, Wiper Motor) Power Tools

Read More

Some of Our Important Product Categories

© 2024 SPA Exim Pvt. Ltd. All Rights Reserved.
